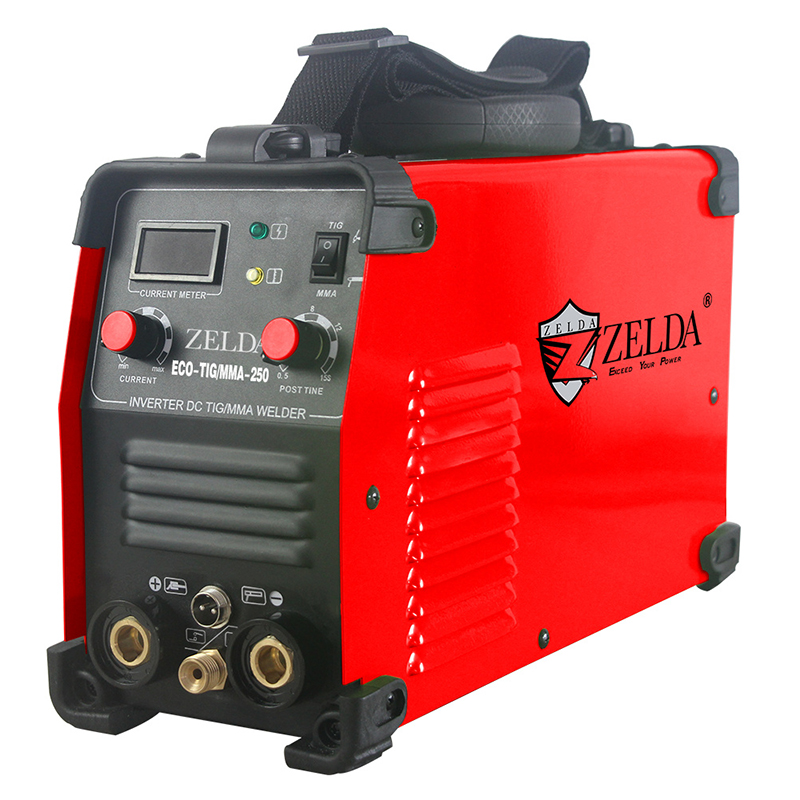

ECO-TIG/MMA-250

Home  >  Product  >  TIG WELDERS (GTAW)  >  ECO-TIG/MMA-250
ECO-TIG/MMA-250

ECO-TIG/MMA-250

008613958471822

zelda@zeldatools.com

8613958471822

ECO-TIG/MMA-250
ECO-TIG/MMA-250
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Information

Parameter

Item

ECO-TIG/MMA-160

ECO-TIG/MMA-200

ECO-TIG/MMA-250

Rated Input Voltage(V)

1ph,230±15%

1ph,230±15%

1ph,230±15%

Input Frequency(Hz)

50/60

50/60

50/60

Rated Input Power(KVA)

4.5

6.6

8.3

No-load Voltage(V)

56

56

56

Output Voltage(V)

16.4

18

20

Output Current(A)

10-160

10-200

10-250

Duty Cycle(%)

60%

60%

60%

Efficiency(%)

85

85

85

Insulation Class

F

F

F

Protection Class

Ip21S

Ip21S

Ip21S

Weight(Kg)

10.8

11

11.2

TIG Welding Thickness(mm)

0.5-4

0.5-5

0.5-6

MMA Electrode Diameter(mm)

1.6-3.2

1.6-3.2

1.6-4.0
